US Videojet 1210
发布者：煜安工业品（苏州）有限公司 发布时间：2020-1-16 10:42:08 点击次数：305 关闭
Technical Parameters

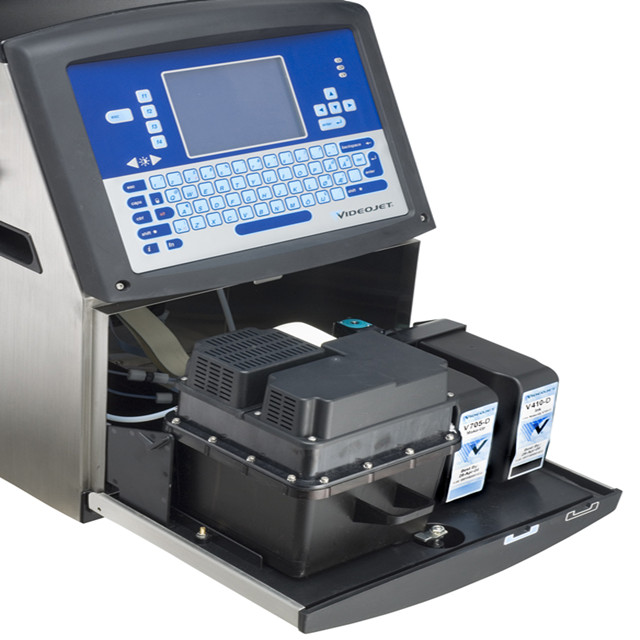

   The new Videojet 1210 small-character printer has a longer trouble-free running time and requires less maintenance. The small-character printer has minimal maintenance and does not need to be adjusted even if it is restarted for several days. Equipped with a smart cartridge with a smart chip for easier replacement. The icon-displayed user interface and innovative features make this device even easier to operate. The automatic calibration and automatic cleaning function of the print head ensure the consistency of printing and longer printing time. Smart ink cartridge, the ink cartridge has a smart chip, which can determine whether the installed ink is accurate and prevent errors. The unique design can completely deplete the ink without leaving any residue, thereby further realizing the concept of cost savings.


Features:
1. Advanced performance: up to 3 lines of coding lines, single line speed up to 162 meters / minute (533 feet / minute); standard USB interface, pattern and storage information backup.
Second, easy maintenance: 6000 hours of maintenance-free; no stains, no waste, no errors.
Third, excellent protection performance: standard configuration IP55 protection level.
Machine size: stainless steel chassis: height 21.3 (541mm) length 13.6 (345mm) width 11.2 (285mm).
                  Optional dot matrix: single line: 5 * 5, 5 * 7, 7 * 9, 11 * 16, 17 * 24;
           Double line: 5 * 5, 5 * 7, 7 * 9;
           Three lines: 5 * 5, 5 * 7.
Nozzle: heating nozzle: diameter: 1.63 (41.3mm) length: 9.47 (240.5mm).
Throat: High flexibility: Length: 6.56 (2m) Diameter: 0.91 (23mm) Bending radius: 3.00 (76.2mm).
Character height: You can choose between 0.079 (2mm) ~ 0.279 (8.5mm) according to the font dot matrix.
Printing distance: the best printing distance: 0.472 (12mm);
        Range: 0.197 (5mm) to 0.591 (15mm).
        Weight: Unpackaged Net Weight: 39.68ibs (18kg).


Customer logo / pattern: User logo / pattern can be edited directly on the printer or VJ dedicated software on the computer.
Character settings: Chinese, Japanese, Korean, Arabic, Russian, Greek and other national languages.
Optional configuration: positive pressure air pump; air drying component for high humidity environment (requires air source); product detection, fault relay, RS485 expansion board; RS232, shaft encoder, alarm light expansion board; 9.8 feet (3m) Nozzle hoses and many other accessories. VJ 1210 small-character printer runs for 6,000 hours (more than 24 months in a shift) without the need for preventive maintenance. Replace the alarm system.
